INCH-POUND
MIL-DTL-83413/8D
17 March 2014
SUPERSEDING
MIL-DTL-83413/8C
24 September 2008
DETAIL SPECIFICATION SHEET
CONNECTORS AND ASSEMBLIES, ELECTRICAL, AIRCRAFT
GROUNDING: TYPE IV JUMPER CABLE ASSEMBLY, LEAD, ELECTRICAL
This specification is approved for use by
all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-83413.
Inches
mm
.125
3.18
.250
6.35
1.25
31.75
1.312
33.32
NOTES:
1.500
38.10
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Resistance readings to be taken at the junction of terminal barrels and tongues.

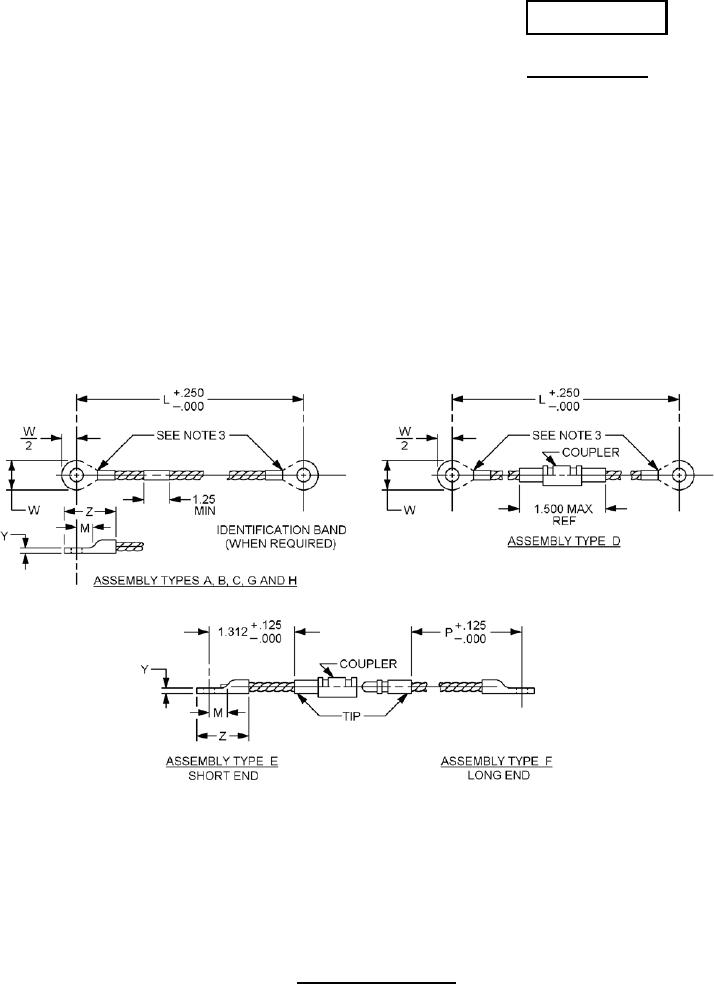

FIGURE 1. Jumper cable assembly.
AMSC N/A
FSC 6150
